AAC is equipped with cutting-edge technology and a highly experienced and certified crew to accomplish a variety of configurations, sizes, and forms of

AAC's capacity to fabricate and deliver Pressure Vessels, together with our considerable experience in Cutting and Machining, Blasting and Coating, Welding, Forming, and Testing, enables us to safely participate in a variety of categories ranging from basic to complicated. We have a capable staff that coordinates Engineering and Design between customers and manufacturers, as well as between international norms and standards.

Our clients the best products and services out of strong commitment and adherence to various International Standards and Regulations such as ASME, OSHA, ISO, ASQ, ASTM, AWS, NACE, AISC, SME, API and more.

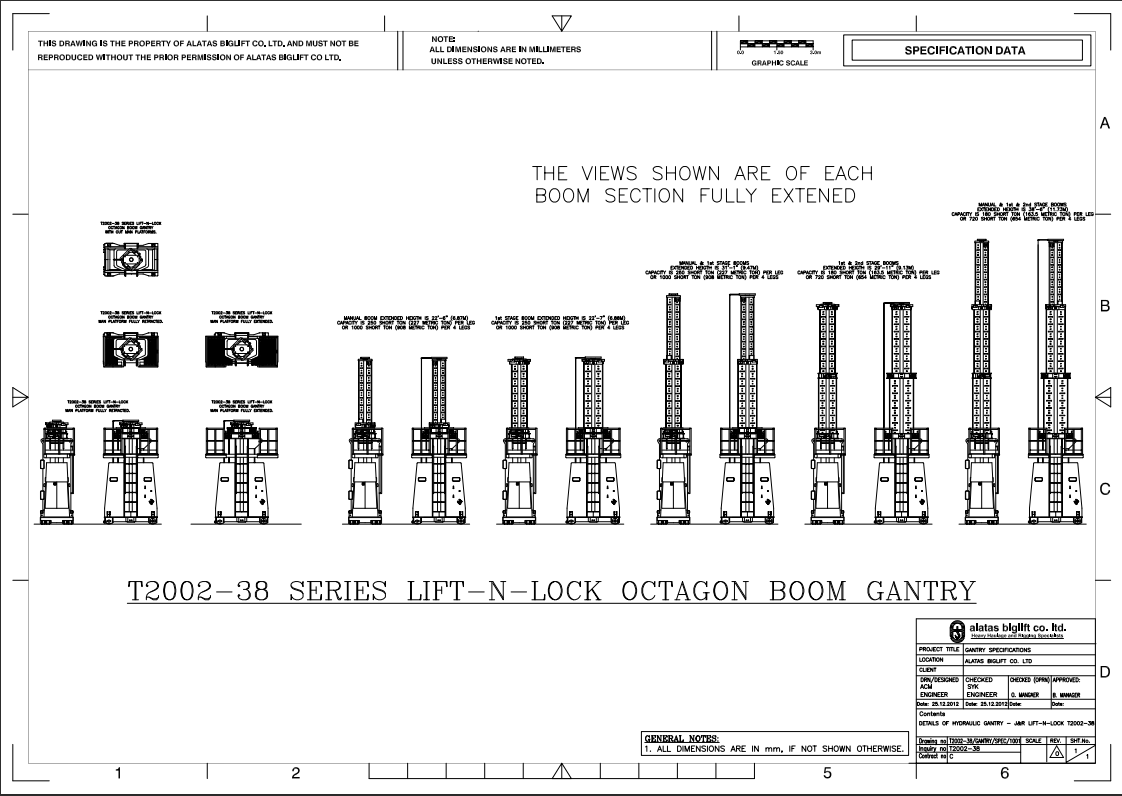

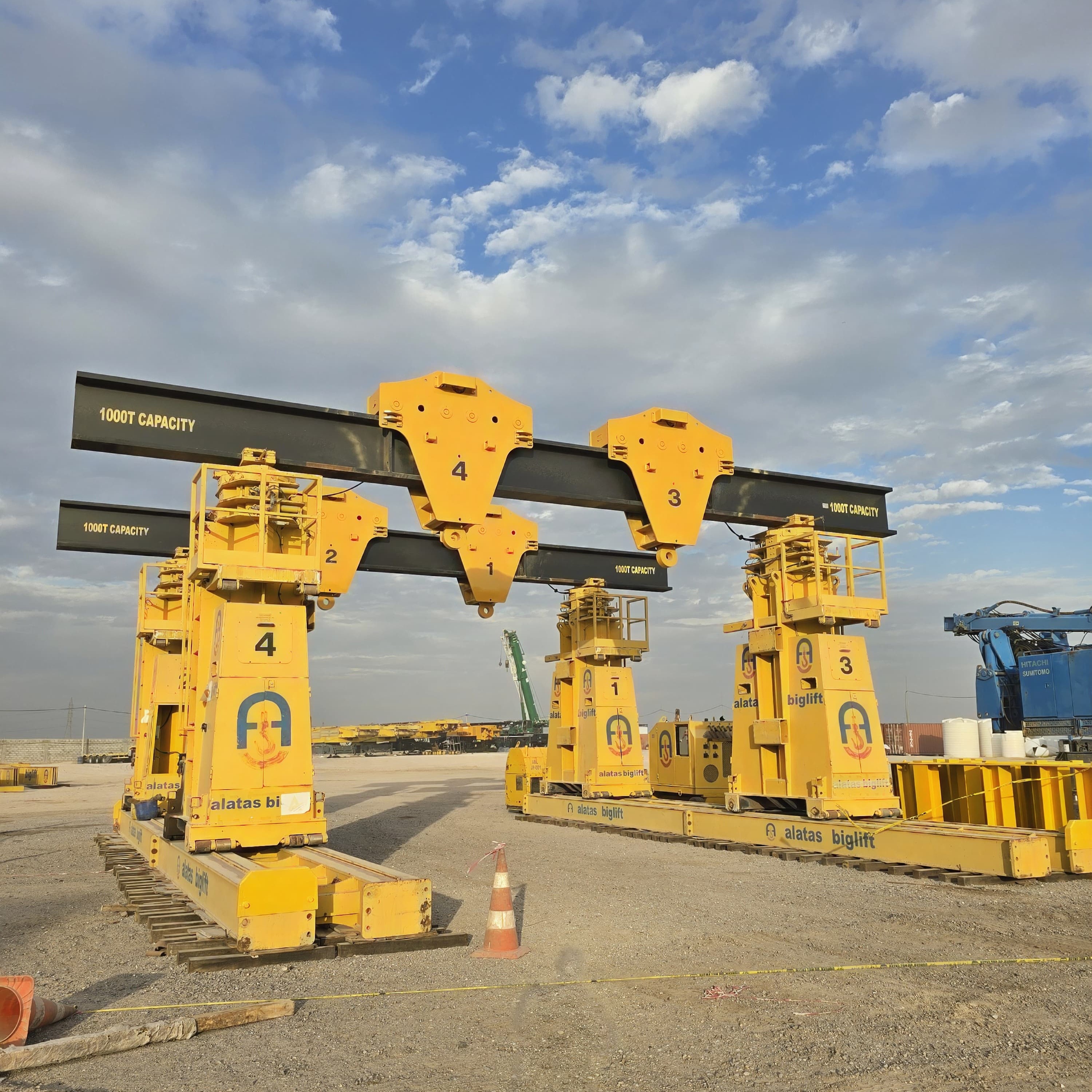

Gantry Specifications





  • Lift housing weight: 28,300 lbs. / 12,840 kg
  • Lift housing length: 88" (7' - 4") / 2.235 m
  • Lift housing width: 50.25" (4" - 2.25") / 1.276 m
  • Retracted height: 168" (14' - 0") / 4.268 m
  • Manual extended: 269" (22' - 5") / 6.833 m
  • 1st stage extended: 270" (22' - 6") / 6.858 m
  • 1st stage & manual extended: 373" (31' - 1") / 9.474 m
  • 2nd stage & 1st stage extended: 359" (29' - 11") / 9.474 m
  • 2nd stage & 1st stages & manual extended: 462" (38' - 6") / 11.734 m
  • Manual capacity (4 lift housings): 1000 ton / 910 metric ton
  • 1st stage capacity (4 lift housings): 1000 ton / 910 metric ton
  • 2nd stage capacity (4 lift housings): 720 ton / 654 metric ton
  • Wheel specification: 9" (229 mm) x 4.5" (114 mm) wide
  • Wheel quantity: 8 wheels per lift housing
  • Wheel guide rod centers: 36" (914 mm)
  • Wheel base (center to center): 93.5" (2,375 mm)
  • Two speed shifting system: 1100 to 1200 psi
